VeloBRING

the agile CARGOBIKE

The VeloBRING has real power. The E-cargobike made by BAYK AG with its high driving force, its extremely resilient construction and its excellent manoeuvrability. As a pedelec can also drive wherever bicycles are allowed to drive, e.g. on bike paths, through pedestrian zones and parks, but also contrary to the direction of one-way streets, which are also released for cyclists. The driver does not need a driver’s license and the vehicle does not require an insurance license plate.

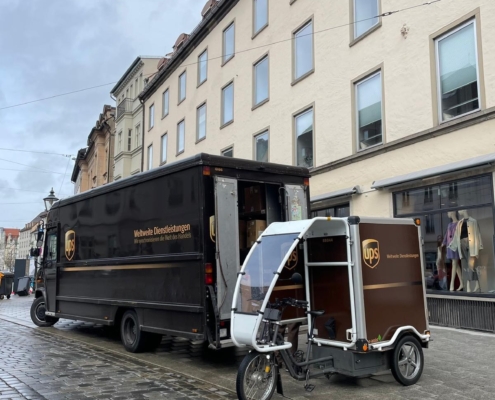

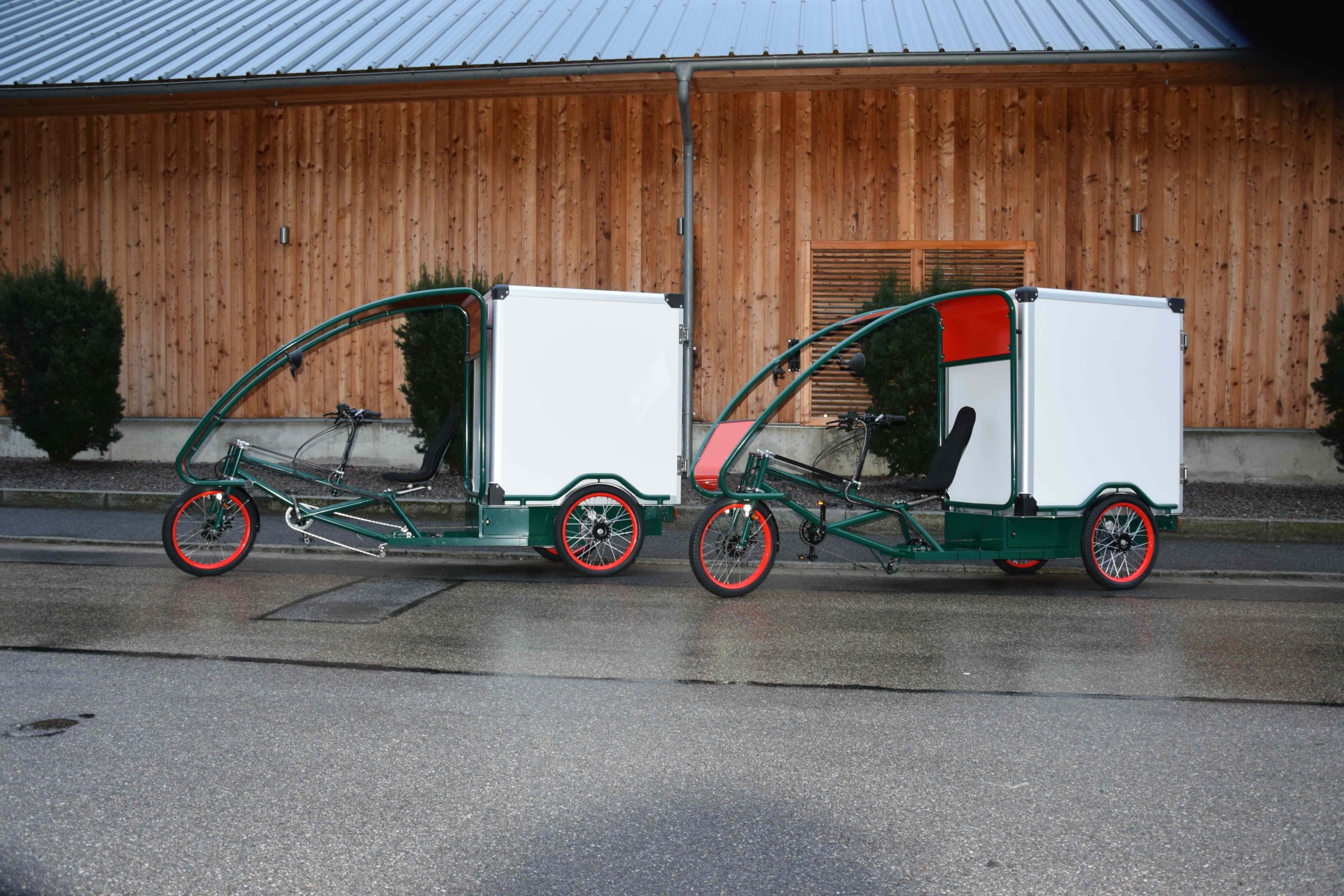

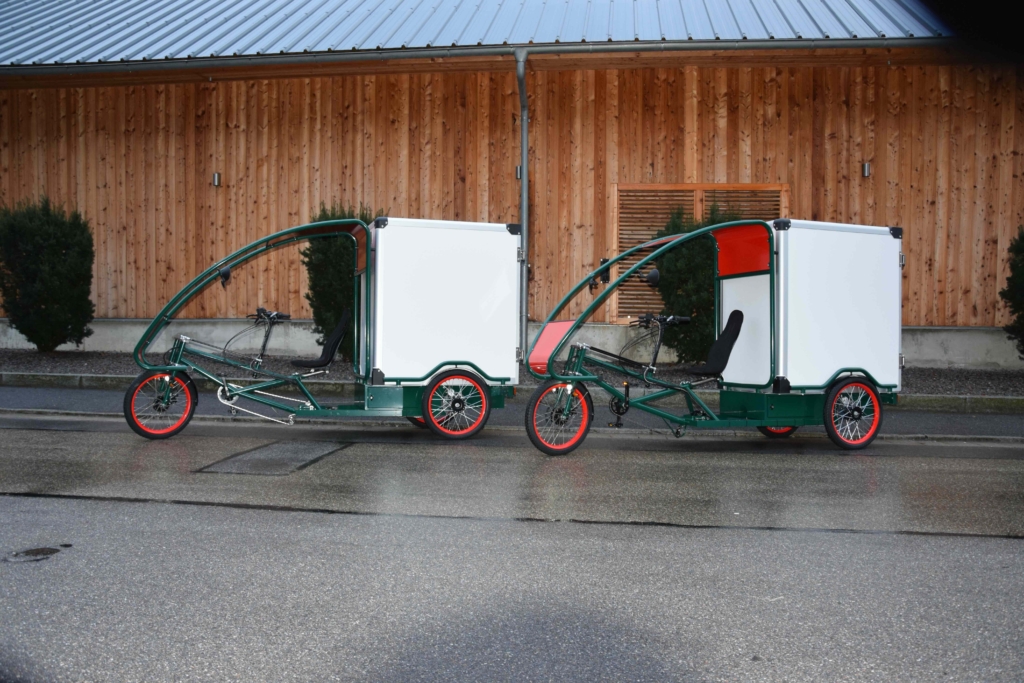

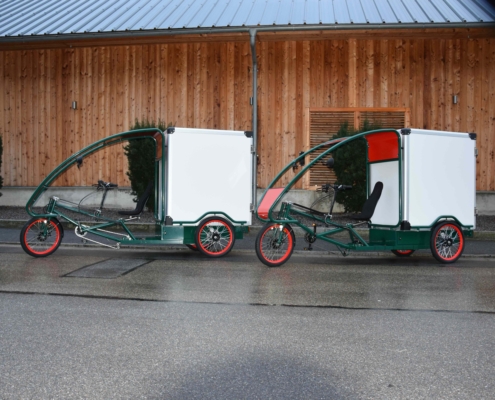

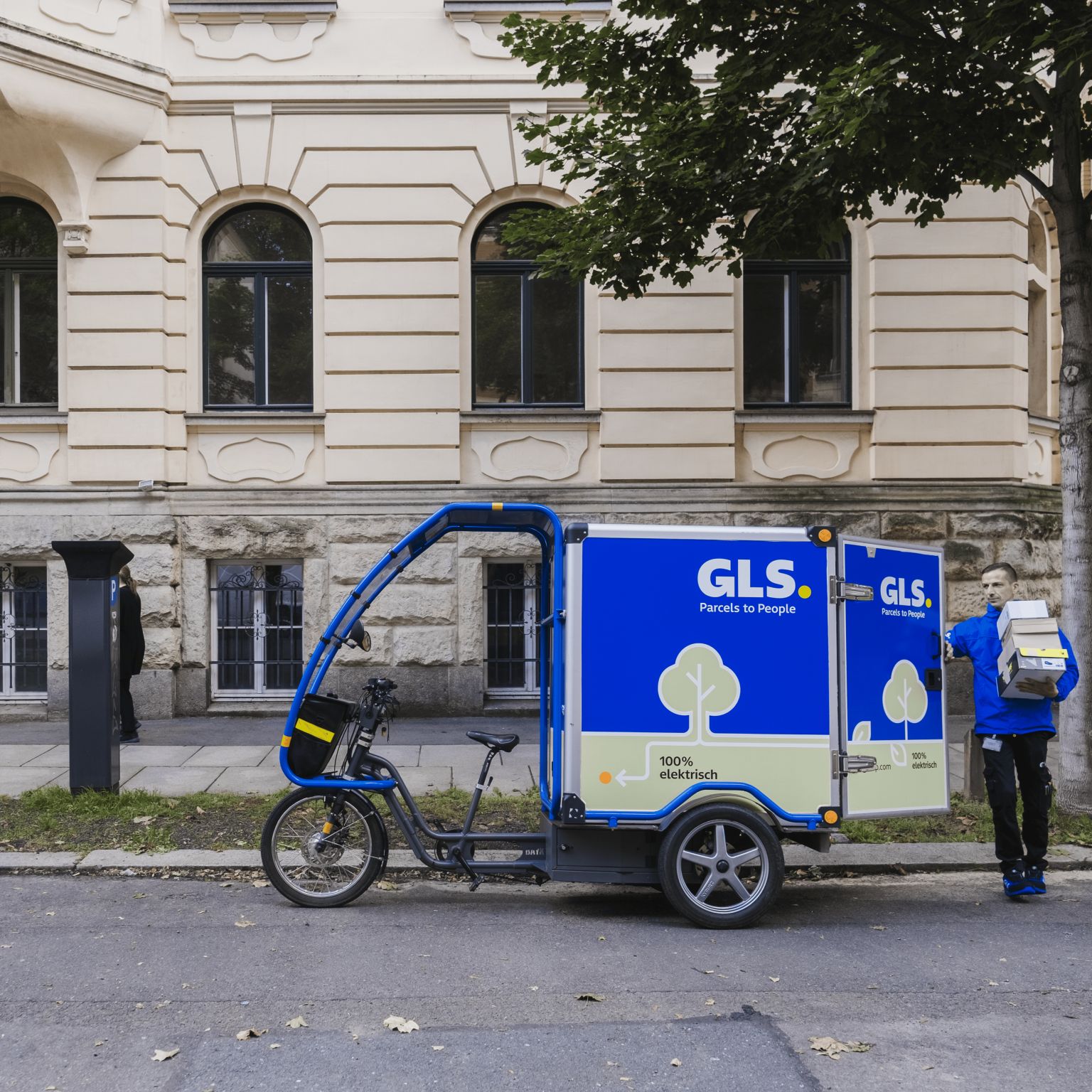

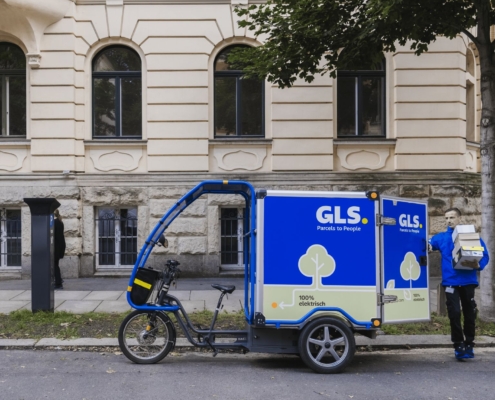

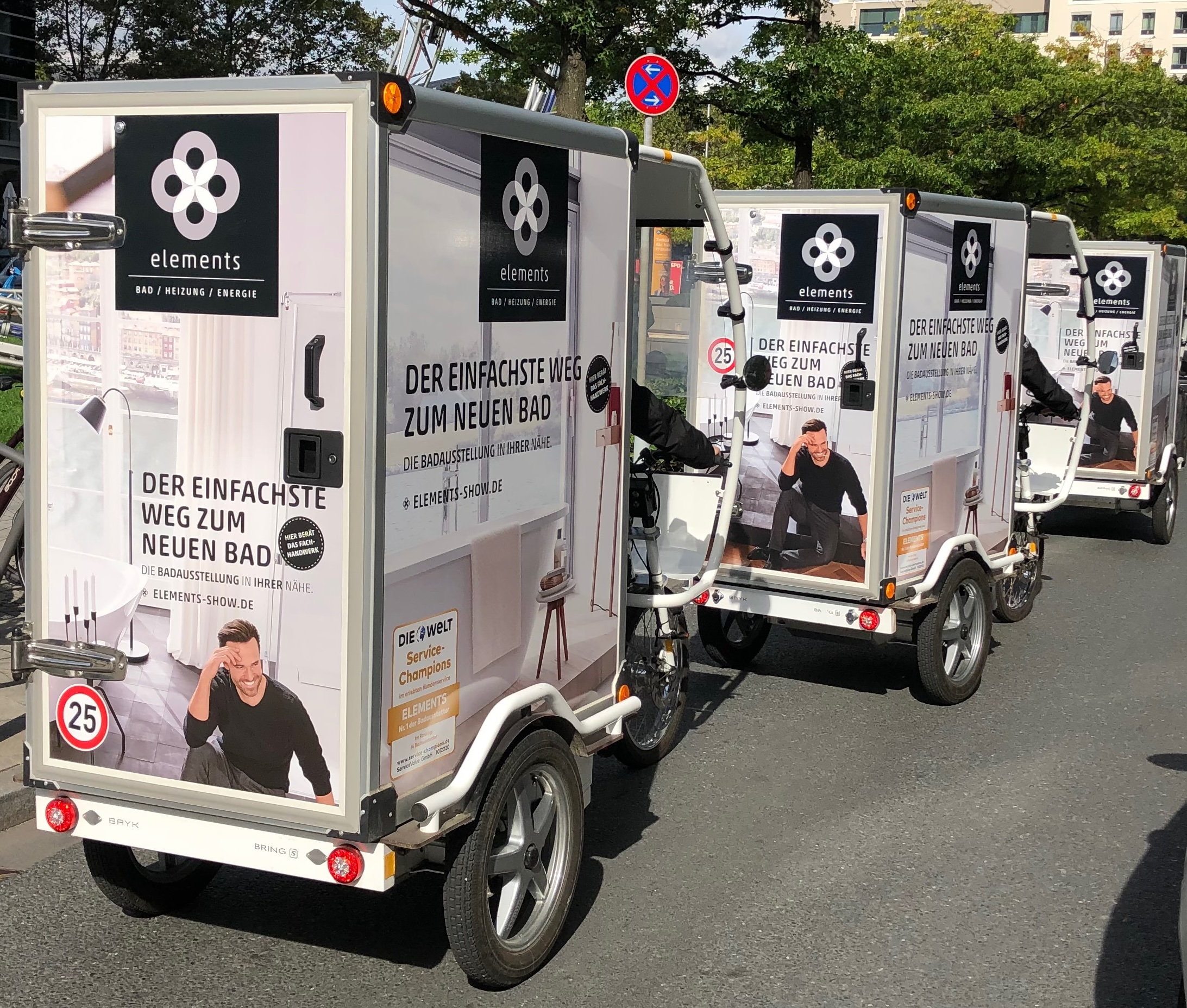

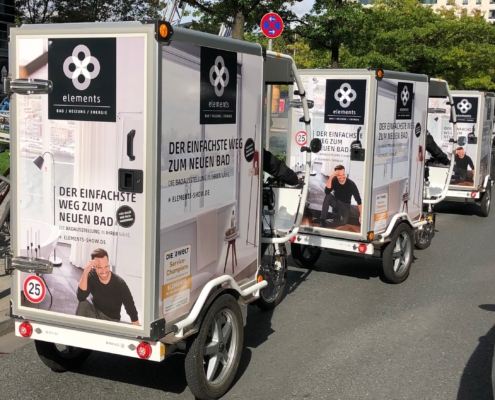

When being used commercially, the VeloBRING also strikes with a strong external effect: It can be individually colored and thus becomes an unmissable eye-catcher. The CARGOBOX container provides all around a large outer area to place your advertising message into the world.

Real power pack
DUAL MOTOR DRIVE with 200 Nm torque
Full energy
battery pack with up to 4,000 Wh capacity
Maximum range
Up to 80 kilometres supported driving distance*
Large loading capacity
1,5 m³ volume with space for one Euro pallet
Convincing payload
Up to 250 kg maximum payload**
Small turning circle
Less than 3 meters with one rear wheel remaining stationary
Optimised everyday delivery
Reverse gear up to 4 km/h and starting aid/pushing aid up to 6 km/h
Resilient construction
Use of motorcycle components such as wheels, tyres and hydraulic brake system
Optimised seating position
For speedy mounting and dismounting

We are currently collecting the opinions of our international customers. Please have some patience.

Further info

Technical specifications

Dimensions	2,77 / 1,10 / 2,00 m (L/B/H)
Tare Weight	182 kg (with battery set, without CARGOBOX / container, without driver, without loading payload)
Loading capacity	Up to 318 kg (summery of driver +loading area superstructure + loading payload)
Total weight	500 kg (summery of tare weight + loading capacity)

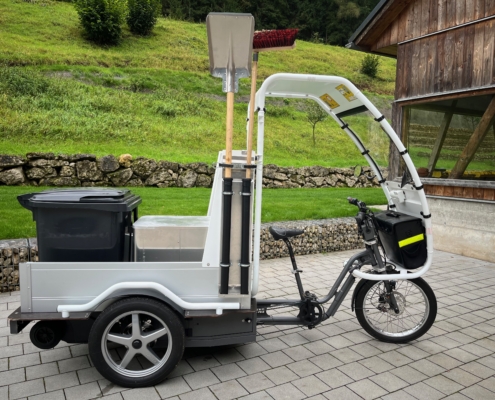

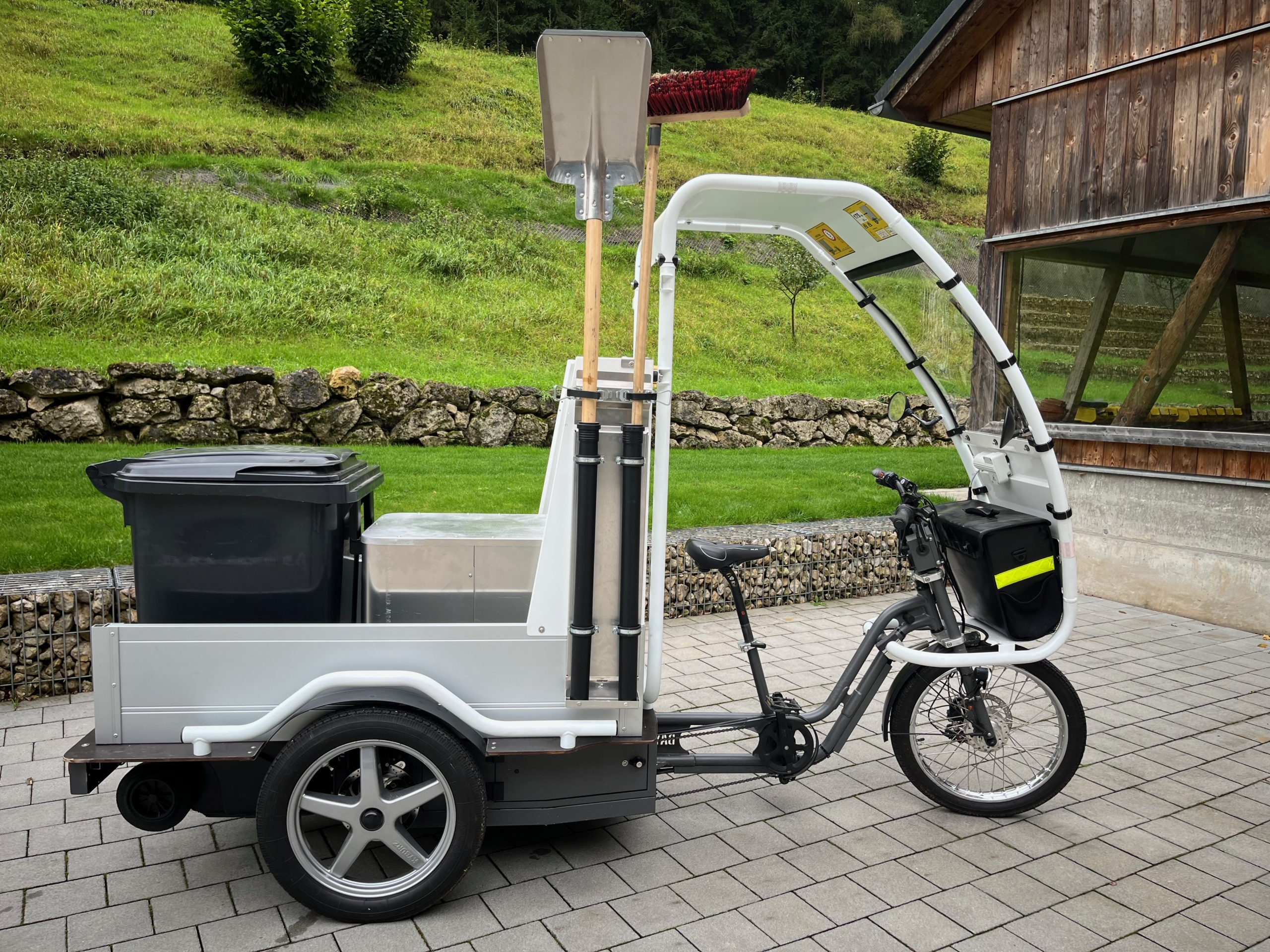

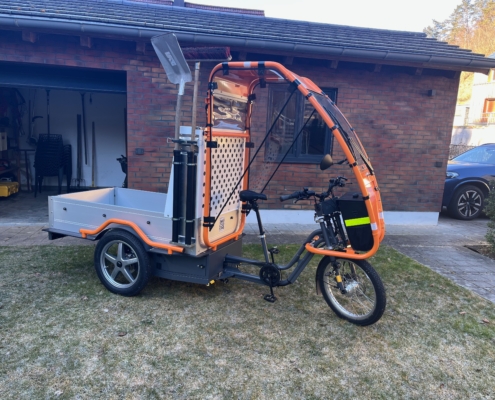

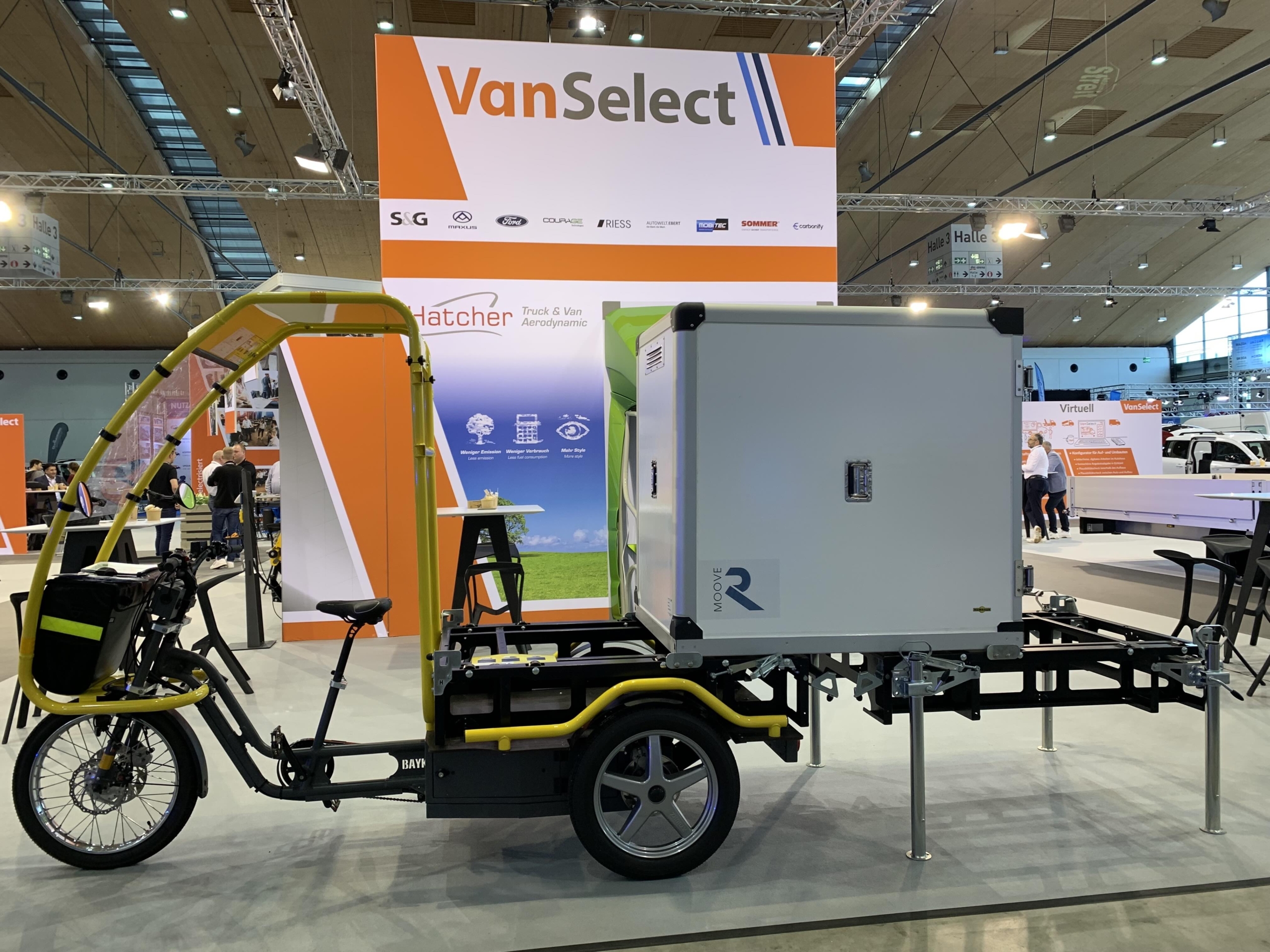

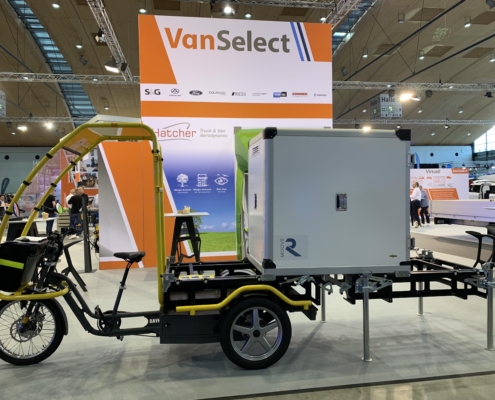

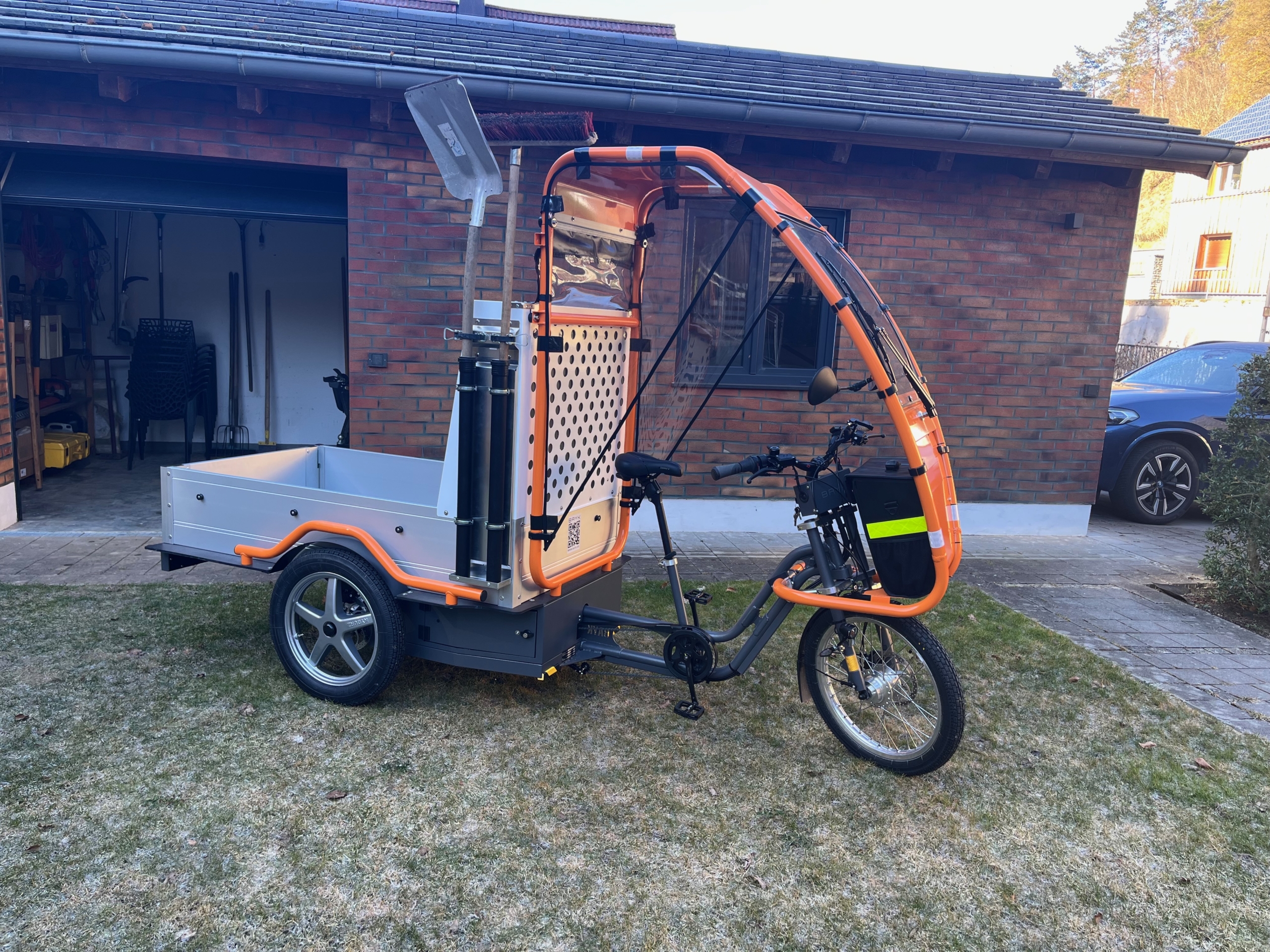

Loading area structure	CARGOBOX L container , CARGOBOX S container, pick-up-platform L and pick-up-platform S
Authorization	EPAC (Electrically Power Assisted Cycle)/Pedelec E-Bike
Certification	CE / EN 15194, DIN 79010, DIN 79010:2020-02
Motors	DUAL MOTOR DRIVE 48 V, 222 Nm (two motors on rear axle)
Engine performance	250 W Continuous Nominal Power, motor support up to 25 km/h, maximum power 2.700 W
Batteries	Battery sets with up to 80 Ah / 4.000 Wh Li-Ion
Charger	charger with 8 A or 3 A
Range	Up to 80 km (depends on the use of pedal support, level of the engine-support, total weight vehicle, geographical aspects (gradient and condition of the route, wind, outdoor temperature), condition of the battery and tire pressure)
Braking System	hydraulic motorcycle disc brake
Tyres	tyres of Heidenau (16″x 3″ / 19″ x 2,75″)
Lights	LED front light and direction indicators / LED back light with braking light and direction indicators
Gear Shift	3-speed, 7-speed or 14-speed hub gear
Warranty	Vehicle 2 years / batteries 1 year

price information

Please ask for a specific offer / quotation via info@bayk.ag.

Please here the current pricelist

Preisliste DE und EN _VeloBRING CGD_Stand 17092025

State support

Under the German Small Series Directive, investments in electric heavy-duty bicycles and heavy-duty trailers with electric power assistance are eligible for support for bicycle-bound freight transport.

For further information and assistance on how to apply, please visit the website of the Federal Office of Economics and Export Control, BAFA for short: https://www.bafa.de/DE/Energie/Energieeffizienz/E-Lastenfahrrad/e-lastenfahrrad_node.html

Broschure

BAYK_AG_Imagebroschuere_VeloBRING_21x21cm_ANSICHT1_ENG

* Range depends on the use of pedal support, level of the engine-support, the amount of the load, geographical aspects (gradient and condition of the route, wind, outdoor temperature), condition of the battery and tire pressure
** maximum additional load depends on battery set, CARGOBOX / loading area construction, driver’s weight
